Flipbook Node⚓︎

In shader graph, The Flipbook node generates UV coordinates that are used to sample a texture that's divided into frames laid out in a grid pattern. It's most frequently used to playback a series of frames to create an animation.

Here is the example of the Flipbook node provided by Unity:

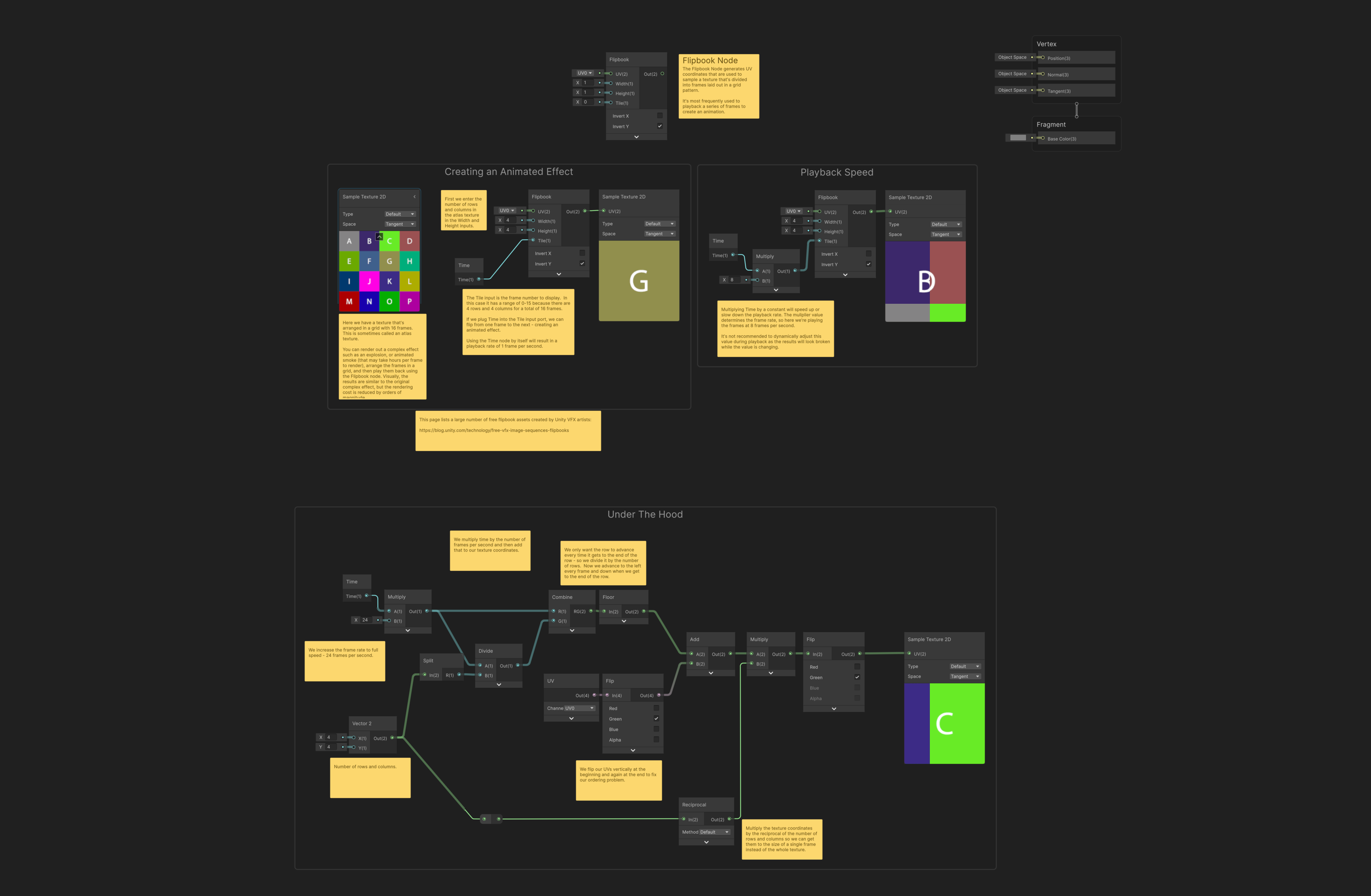

alt text

How to use the Flipbook node?

Below are the properties of the Flipbook node:

  • UV: The UV coordinates used to sample the texture.
  • Width: The number of frames in the texture's horizontal direction.
  • Height: The number of frames in the texture's vertical direction.
  • Tile: The amount equal to the number of which the texture is tiled in the horizontal and vertical directions. It will be modedbythe number of Height and Width. (NOTICE: We should use Floor here, since the number must be a integer.)

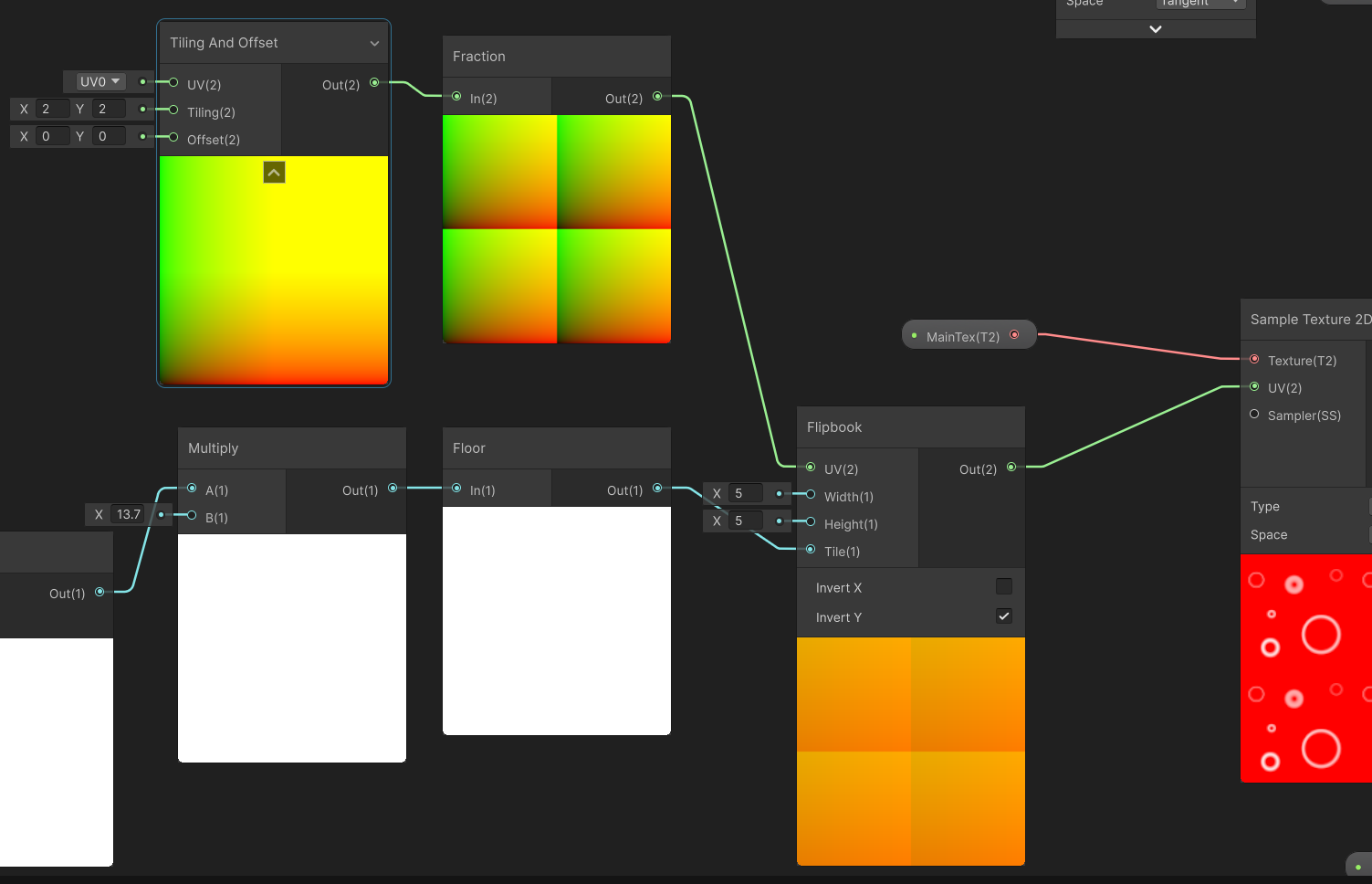

alt text

How to generate texture for Flipbook ?

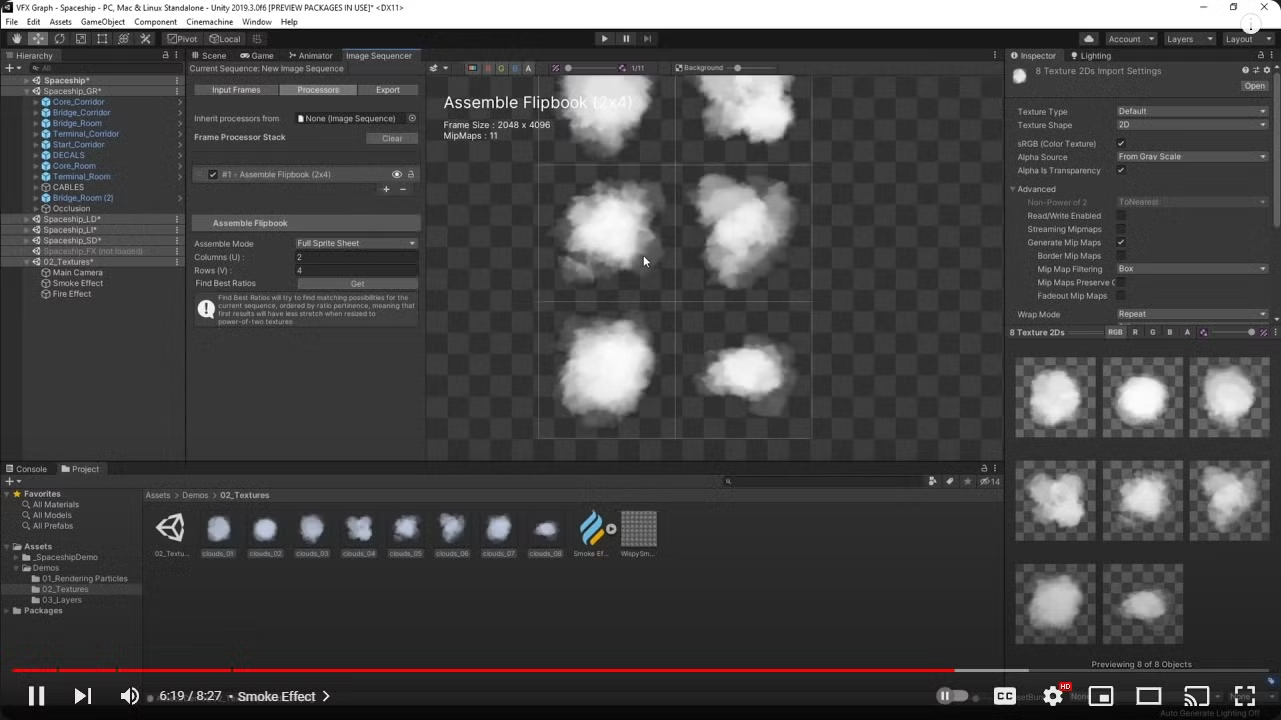

alt text

Image Sequencer is a tool that allows you to create flipbooks from a sequence of images. Basically what you need is:

  1. Create an animation use shader graph.
  2. Record the animation as a GIF or a sequence of images.
  3. If you have a GIF, you can use online tools to convert it to a sequence of images.
  4. Use Image Sequencer to generate the Flipbook texture.

Reference videos:
